| OMRON SYSMAC CP Series PLC |
| One-package CP1 PLCs provide Built-in PULSE output, Analog I / O, and Serial Communications. |

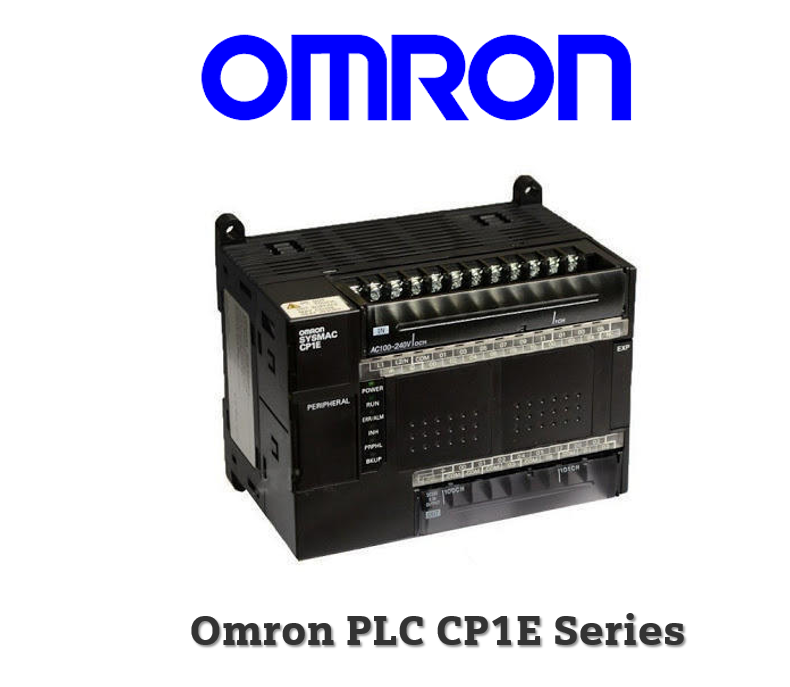

| CP1E Series PLC |
|
| Responding to global competition that has DeviceControl Possibility The CP1Cost-effective CP1E Enhanced Extension for Analog and Temperature Control |
| generation |
Detail |
| CP1E-E (E10-E20 Not Extensions / Other Extensions, Max 3) |
| CP1E-E10DR-A |
CP1E-E CPU 2K steps; 6DI / 4DO (Relay), 220VAC SUPPLY |
| CP1E-E10DT-A |
CP1E-E CPU 2K steps; 6DI / 4DO (sink sink transistor), 220VAC SUPPLY |
| CP1E-E10DT1-A |
CP1E-E CPU 2K steps; 6DI / 4DO (Transistor Output), 220VAC SUPPLY |
| CP1E-E10DR-D |
CP1E-E CPU 2K steps; 6DI / 4DO (Relay), 24VDC SUPPLY |
| CP1E-E10DT-D |
CP1E-E CPU 2K steps; 6DI / 4DO (sink sink transistor), 24VDC SUPPLY |
| CP1E-E10DT1-D |
CP1E-E CPU 2K steps; 6DI / 4DO (Transistor Output), 24VDC SUPPLY |
| CP1E-E14DR-A |
CP1E-E CPU 2K steps; 8DI / 6DO (RELAY), 220VAC SUPPLY |
| CP1E-E20DR-A |
CP1E-E CPU 2K steps; 12DI / 8DO (Relay), 220VAC SUPPLY |
| CP1E-E30DR-A |
CP1E-E CPU 2K steps; 18DI / 12DO (Relay), 220VAC SUPPLY |
| CP1E-E40DR-A |
CP1E-E CPU 2K steps; 24DI / 16DO (Relay), 220VAC SUPPLY |
| CP1E-E60DR-A |
CP1E-E CPU 2K steps; 36DI / 24DO (RELAY), 220VAC SUPPLY |
| CP1E-N (N14, N20 Not Extensions / Other Extensions, Maximum 3) |
| CP1E-N14DR-A |
CP1E-N CPU 8K steps; 8DI / 6DO (RELAY), 220VAC SUPPLY |
| CP1E-N14DT-A |
CP1E-N CPU 8K steps; 8DI / 6DO (sink sink transistor), 220VAC SUPPLY |
| CP1E-N14DT1-A |
CP1E-N CPU 8K steps; 8DI / 6DO (transistor output), 220VAC SUPPLY |
| CP1E-N14DR-D |
CP1E-N CPU 8K steps; 8DI / 6DO (RELAY), 24VDC SUPPLY |
| CP1E-N14DT-D |
CP1E-N CPU 8K steps; 8DI / 6DO (sink sink transistor), 24VDC SUPPLY |
| CP1E-N14DT1-D |
CP1E-N CPU 8K steps; 8DI / 6DO (transistor output), 24VDC SUPPLY |
| CP1E-N20DR-A |
CP1E-N CPU 8K steps; 12DI / 8DO (Relay), 220VAC SUPPLY |
| CP1E-N20DT-A |
CP1E-N CPU 8K steps; 12DI / 8DO (sink sink transistor), 220VAC SUPPLY |
| CP1E-N20DT1-A |
CP1E-N CPU 8K steps; 12DI / 8DO (Transistor Output), 220VAC SUPPLY |
| CP1E-N20DR-D |
CP1E-N CPU 8K steps; 12DI / 8DO (Relay), 24VDC SUPPLY |
| CP1E-N20DT-D |
CP1E-N CPU 8K steps; 12DI / 8DO (sink sink transistor), 24VDC SUPPLY |
| CP1E-N20DT1-D |
CP1E-N CPU 8K steps; 12DI / 8DO (transistor output), 24VDC SUPPLY |
| CP1E-N30DR-A |
CP1E-N CPU 8K steps; 18DI / 12DO (Relay), 220VAC SUPPLY |
| CP1E-N30DT-A |
CP1E-N CPU 8K steps; 18DI / 12DO (sink sink transistor), 220VAC SUPPLY |
| CP1E-N30DT1-A |
CP1E-N CPU 8K steps; 18DI / 12DO (transistor output), 220VAC SUPPLY |
| CP1E-N30DR-D |
CP1E-N CPU 8K steps; 18DI / 12DO (Relay), 24VDC SUPPLY |
| CP1E-N30DT-D |
CP1E-N CPU 8K steps; 18DI / 12DO (sink sink transistor), 24VDC SUPPLY |
| CP1E-N30DT1-D |
CP1E-N CPU 8K steps; 18DI / 12DO (transistor output), 24VDC SUPPLY |
| CP1E-N40DR-A |
CP1E-N CPU 8K steps; 24DI / 16DO (Relay), 220VAC SUPPLY |
| CP1E-N40DT-A |
CP1E-N CPU 8K steps; 24DI / 16DO (sink sink transistor), 220VAC SUPPLY |
| CP1E-N40DT1-A |
CP1E-N CPU 8K steps; 24DI / 16DO (Transistor Output), 220VAC SUPPLY |
| CP1E-N40DR-D |
CP1E-N CPU 8K steps; 24DI / 16DO (Relay), 24VDC SUPPLY |
| CP1E-N40DT-D |
CP1E-N CPU 8K steps; 24DI / 16DO (sink sink transistor), 24VDC SUPPLY |
| CP1E-N40DT1-D |
CP1E-N CPU 8K steps; 24DI / 16DO (transistor output), 24VDC SUPPLY |
| CP1E-N60DR-A |
CP1E-N CPU 8K steps; 36DI / 24DO (RELAY), 220VAC SUPPLY |
| CP1E-N60DT-A |
CP1E-N CPU 8K steps; 36DI / 24DO (sink sink transistor), 220VAC SUPPLY |
| CP1E-N60DT1-A |
CP1E-N CPU 8K steps; 36DI / 24DO (transistor output), 220VAC SUPPLY |
| CP1E-N60DR-D |
CP1E-N CPU 8K steps; 36DI / 24DO (Relay), 24VDC SUPPLY |
| CP1E-N60DT-D |
CP1E-N CPU 8K steps; 36DI / 24DO (sink sink transistor), 24VDC SUPPLY |
| CP1E-N60DT1-D |
CP1E-N CPU 8K steps; 36DI / 24DO (transistor output), 24VDC SUPPLY |
| CP1E-NA20DR-A |
CP1E-NA CPU 8K steps; 12DI / 8DO / 2AI / 1AO (Relay), 220VAC SUPPLY |
| CP1E-NA20DT-D |
CP1E-NA CPU 8K steps; 12DI / 8DO / 2AI / 1AO (Output sink transistor), 24VDC SUPPLY |
| CP1E-NA20DT1-D |
CP1E-NA CPU 8K steps; 12DI / 8DO / 2AI / 1AO (Output transistor)) 24VDC SUPPLY |
| CP1E-E (E10-E20 Not Extensions / Other Extensions, Max 3) |
| CP1E-E14SDR-A |
CP1E-E CPU 2K steps; 8DI / 6DO (RELAY), 220VAC SUPPLY |
| CP1E-E20SDR-A |
CP1E-E CPU 2K steps; 12DI / 8DO (Relay), 220VAC SUPPLY |
| CP1E-E30SDR-A |
CP1E-E CPU 2K steps; 18DI / 12DO (Relay), 220VAC SUPPLY |
| CP1E-E40SDR-A |
CP1E-E CPU 2K steps; 24DI / 16DO (Relay), 220VAC SUPPLY |
| CP1E-E60SDR-A |
CP1E-E CPU 2K steps; 36DI / 24DO (RELAY), 220VAC SUPPLY |
| CP1E-N ** S (N14, N20, Not Extensions / Other Extensions, Maximum 3) |
| CP1E-N30SDR-A |
CP1E-N CPU 8K steps; RS232; 18DI / 12DO (Relay), 220VAC SUPPLY |
| CP1E-N30SDT-D |
CP1E-N CPU 8K steps; RS232; 18DI / 12DO (Output Sink Transistor), 24VDC SUPPLY |
| CP1E-N30SDT1-D |
CP1E-N CPU 8K steps; RS232; 18DI / 12DO (transistor output), 24VDC SUPPLY |
| CP1E-N40SDR-A |
CP1E-N CPU 8K steps; RS232; 24DI / 16DO (Relay), 220VAC SUPPLY |
| CP1E-N40SDT-D |
CP1E-N CPU 8K steps; RS232; 24DI / 16DO (sink sink transistor), 24VDC SUPPLY |
| CP1E-N40SDT1-D |
CP1E-N CPU 8K steps; RS232; 24DI / 16DO (transistor output), 24VDC SUPPLY |
| CP1E-N60SDR-A |
CP1E-N CPU 8K steps; RS232; 36DI / 24DO (Relay), 220VAC SUPPLY |
| CP1E-N60SDT-D |
CP1E-N CPU 8K steps; RS232; 36DI / 24DO (sink sink transistor), 24VDC SUPPLY |
| CP1E-N60SDT1-D |
CP1E-N CPU 8K steps; RS232; 36DI / 24DO (transistor output), 24VDC SUPPLY |
| CP1E-N ** S1 (N14, N20 Not Extensions / Other Extensions, Maximum 3) |
| CP1E-N30S1DR-A |
CP1E-N CPU 8K steps; RS232 / RS485; 18DI / 12DO (Relay), 220VAC SUPPLY |
| CP1E-N30S1DT-D |
CP1E-N CPU 8K steps; RS232 / RS485; 18DI / 12DO (sink sink transistor), 24VDC SUPPLY |
| CP1E-N30S1DT1-D |
CP1E-N CPU 8K steps; RS232 / RS485; 18DI / 12DO (transistor output), 24VDC SUPPLY |
| CP1E-N40S1DR-A |
CP1E-N CPU 8K steps; RS232 / RS485; 24DI / 16DO (Relay), 220VAC SUPPLY |
| CP1E-N40S1DT-D |
CP1E-N CPU 8K steps; RS232 / RS485; 24DI / 16DO (sink sink transistor), 24VDC SUPPLY |
| CP1E-N40S1DT1-D |
CP1E-N CPU 8K steps; RS232 / RS485; 24DI / 16DO (transistor output), 24VDC SUPPLY |
| CP1E-N60S1DR-A |
CP1E-N CPU 8K steps; RS232 / RS485; 36DI / 24DO (Relay), 220VAC SUPPLY |
| CP1E-N60S1DT-D |
CP1E-N CPU 8K steps; RS232 / RS485; 36DI / 24DO (sink sink transistor), 24VDC SUPPLY |
| CP1E-N60S1DT1-D |
CP1E-N CPU 8K steps; RS232 / RS485; 36DI / 24DO (transistor output), 24VDC SUPPLY |
