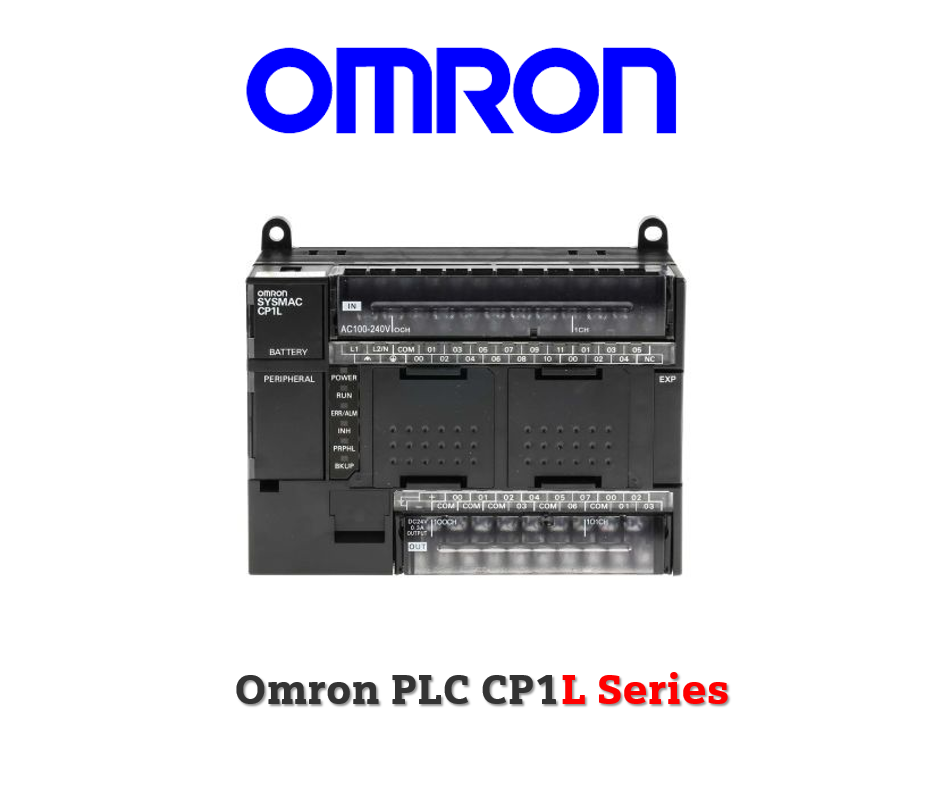

| CP1L Series PLC |
|
| High Performing Programmable Controller with Ethernet |
| generation |
Detail |
| CP1L-L (Extensions up to 1 module) |
| CP1L-L10DR-A |
CP1L-L CPU 5K steps; 6DI / 4DO (Relay), 220VAC SUPPLY |
| CP1L-L10DT-A |
CP1L-L CPU 5K steps; 6DI / 4DO (sink sink transistor), 220VAC SUPPLY |
| CP1L-L10DR-D |
CP1L-L CPU 5K steps; 6DI / 4DO (Relay), 24VDC SUPPLY |
| CP1L-L10DT-D |
CP1L-L CPU 5K steps; 6DI / 4DO (sink sink transistor), 24VDC SUPPLY |
| CP1L-L10DT1-D |
CP1L-L CPU 5K steps; 6DI / 4DO (Transistor Output), 24VDC SUPPLY |
| CP1L-L14DR-A |
CP1L-L CPU 5K steps; 8DI / 6DO (RELAY), 220VAC SUPPLY |
| CP1L-L14DT-A |
CP1L-L CPU 5K steps; 8DI / 6DO (sink sink transistor), 220VAC SUPPLY |
| CP1L-L14DR-D |
CP1L-L CPU 5K steps; 8DI / 6DO (RELAY), 24VDC SUPPLY |
| CP1L-L14DT-D |
CP1L-L CPU 5K steps; 8DI / 6DO (sink sink transistor), 24VDC SUPPLY |
| CP1L-L14DT1-D |
CP1L-L CPU 5K steps; 8DI / 6DO (transistor output), 24VDC SUPPLY |
| CP1L-L20DR-A |
CP1L-L CPU 5K steps; 12DI / 8DO (Relay), 220VAC SUPPLY |
| CP1L-L20DT-A |
CP1L-L CPU 5K steps; 12DI / 8DO (sink sink transistor), 220VAC SUPPLY |
| CP1L-L20DR-D |
CP1L-L CPU 5K steps; 12DI / 8DO (Relay), 24VDC SUPPLY |
| CP1L-L20DT-D |
CP1L-L CPU 5K steps; 12DI / 8DO (sink sink transistor), 24VDC SUPPLY |
| CP1L-L20DT1-D |
CP1L-L CPU 5K steps; 12DI / 8DO (transistor output), 24VDC SUPPLY |
| CP1L-EL20DR-D |
CP1L-EL CPU 5K steps; 12DI / 8DO (Relay), 220VAC SUPPLY |
| CP1L-EL20DT-D |
CP1L-EL CPU 5K steps; 12DI / 8DO (sink sink transistor), 24VDC SUPPLY |
| CP1L-EL20DT1-D |
CP1L-EL CPU 5K steps; 12DI / 8DO (transistor output), 24VDC SUPPLY |
| CP1L-M (Extensions up to 3) |
| CP1L-M30DR-A |
CP1L-M CPU 10K steps; 18DI / 12DO (Relay), 220VAC SUPPLY |
| CP1L-M30DT-A |
CP1L-M CPU 10K steps; 18DI / 12DO (sink sink transistor), 220VAC SUPPLY |
| CP1L-M30DR-D |
CP1L-M CPU 10K steps; 18DI / 12DO (Relay), 24VDC SUPPLY |
| CP1L-M30DT-D |
CP1L-M CPU 10K steps; 18DI / 12DO (sink sink transistor), 24VDC SUPPLY |
| CP1L-M30DT1-D |
CP1L-M CPU 10K steps; 18DI / 12DO (transistor output), 24VDC SUPPLY |
| CP1L-M40DR-A |
CP1L-M CPU 10K steps; 24DI / 16DO (Relay), 220VAC SUPPLY |
| CP1L-M40DT-A |
CP1L-M CPU 10K steps; 24DI / 16DO (sink sink transistor), 220VAC SUPPLY |
| CP1L-M40DR-D |
CP1L-M CPU 10K steps; 24DI / 16DO (Relay), 24VDC SUPPLY |
| CP1L-M40DT-D |
CP1L-M CPU 10K steps; 24DI / 16DO (sink sink transistor), 24VDC SUPPLY |
| CP1L-M40DT1-D |
CP1L-M CPU 10K steps; 24DI / 16DO (transistor output), 24VDC SUPPLY |
| CP1L-M60DR-A |
CP1L-M CPU 10K steps; 36DI / 24DO (RELAY), 220VAC SUPPLY |
| CP1L-M60DT-A |
CP1L-M CPU 10K steps; 36DI / 24DO (sink sink transistor), 220VAC SUPPLY |
| CP1L-M60DR-D |
CP1L-M CPU 10K steps; 36DI / 24DO (Relay), 24VDC SUPPLY |
| CP1L-M60DT-D |
CP1L-M CPU 10K steps; 36DI / 24DO (sink sink transistor), 24VDC SUPPLY |
| CP1L-M60DT1-D |
CP1L-M CPU 10K steps; 36DI / 24DO (transistor output), 24VDC SUPPLY |
| CP1L-EM30DR-D |
CP1L-EM CPU 10K steps; 18DI / 12DO (Relay), 24VDC SUPPLY |
| CP1L-EM30DT-D |
CP1L-EM CPU 10K steps; 18DI / 12DO (sink sink transistor), 24VDC SUPPLY |
| CP1L-EM30DT1-D |
CP1L-EM CPU 10K steps; 18DI / 12DO (transistor output), 24VDC SUPPLY |
| CP1L-EM40DR-D |
CP1L-EM CPU 10K steps; 24DI / 16DO (Relay), 24VDC SUPPLY |
| CP1L-EM40DT-D |
CP1L-EM CPU 10K steps; 24DI / 16DO (sink sink transistor), 24VDC SUPPLY |
| CP1L-EM40DT1-D |
CP1L-EM CPU 10K steps; 24DI / 16DO (transistor output), 24VDC SUPPLY |
