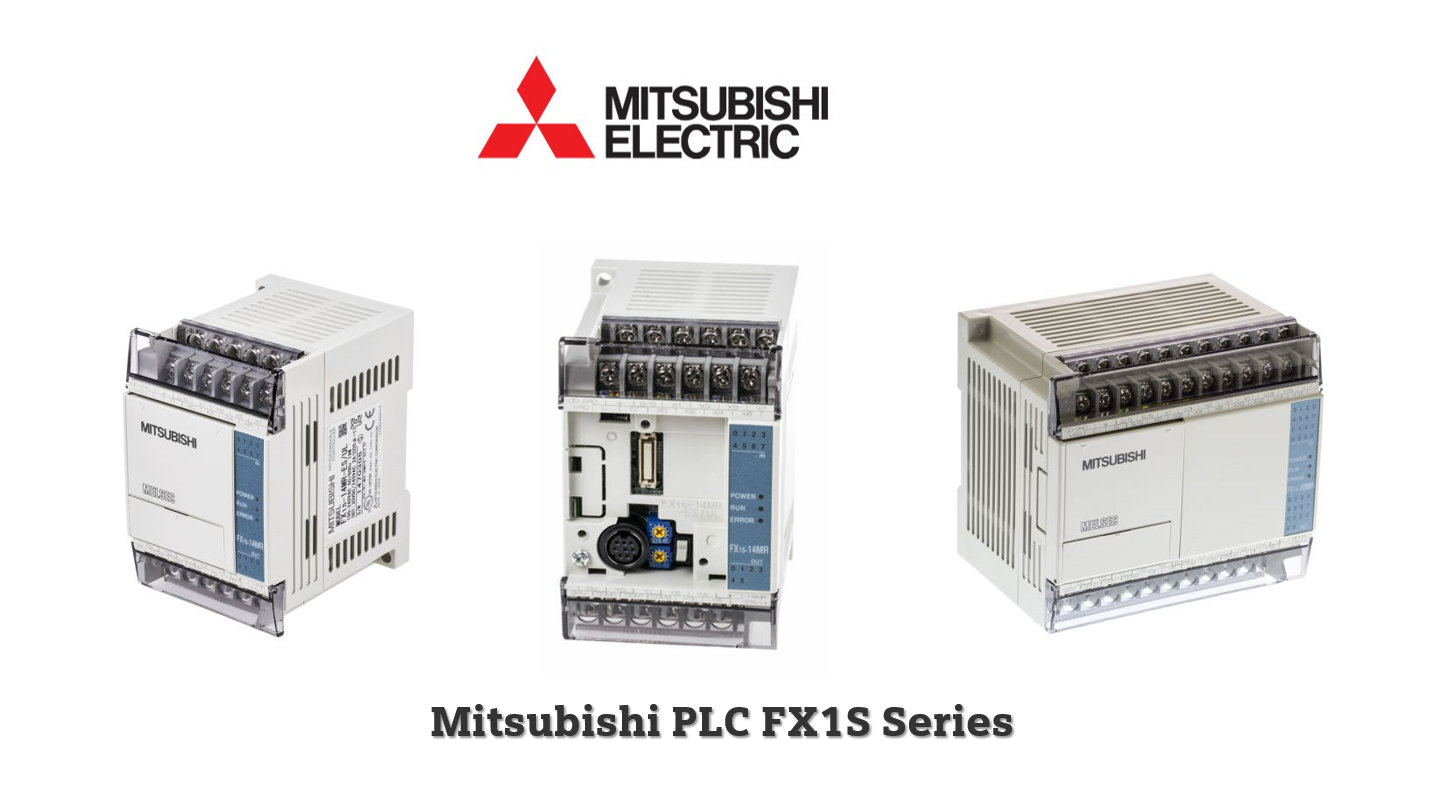

PLC FX1S Series
นอกจากสิ้นค้าที่วางจำหน่ายหน้าร้านแล้ว บริษัทของเรายังนำเข้า และจัดจำหน่าย PLC Mitsubishi FX1S ทุกรุ่น
FX1S series,FX1N series and AH series include transistor(MT) and relay (MR) two output forms, and there are also DC voltage products
T= transistor output (for non-contact, DC load)
For general specifications and character specifications, please refer to the user manual (usually a user manual will be provided with a new machine)
Before installation and wiring, please read the manual carefully to avoid unnecessary accidents.|
Total points |
Input points |
Output points |
AC power DC input Relay output |
AC power DC input Transistor output |
DC power supply DC input Relay output |
DC power supply DC input Relay output |
|
10 |
6 |
4 |
FX1S-10MR-001 |
FX1S-10MT-001 |
FX1S-10MR-D |
FX1S-10MT-D |
|
14 |
8 |
6 |
FX1S-14MR-001 |
FX1S-14MT-001 |
FX1S-14MR-D |
FX1S-14MT-D |
|
20 |
12 |
8 |
FX1S-20MR-001 |
FX1S-20MT-001 |
FX1S-20MR-D |
FX1S-20MT-D |
|
30 |
16 |
14 |
FX1S-30MR-001 |
FX1S-30MT-001 |
FX1S-30MR-D |
FX1S-30MT-D |
Specification
|
category |
model |
specification |
size |
Standard function |
|
1S |
1S-30MR-001 |
16 points input 14 points relay output, AC220V |
Installation size: 100*90*75MM , overall size: 100*90*75MM |
With 2 high-speed counting inputs |
|
1S |
1S-30MT-001 |
16 points input 14 points transistor output, AC220V |
Installation size: 100*90*75MM , overall size: 100*90*75MM |
With 2 high-speed counting inputs, 2 high-speed pulse outputs |
|
1S |
1S-20MR-001 |
12 points input 8 points relay output, AC220V |
Installation size: 75*90*75MM , external size: 75*90*75MM |
With 2 high-speed counting inputs |
|
1S |
1S-20MT-001 |
12 points input 8 points transistor output, AC220V |
Installation size: 75*90*75MM , external size: 75*90*75MM |
With 2 high-speed counting inputs, 2 high-speed pulse outputs |
|
1S |
1S-14MR-001 |
8 input and 6 relay output, AC220V |
Installation size: 60*90*75MM , external size: 60*90*75MM |
With 2 high-speed counting inputs |
|
1S |
1S-14MT-001 |
8 input and 6 transistor output, AC220V |
Installation size: 60*90*75MM , external size: 60*90*75MM |
With 2 high-speed counting inputs, 2 high-speed pulse outputs |
|
1S |
1S-10MR-001 |
6 points input 4 points relay output, AC220V |
Installation size: 60*90*75MM , external size: 60*90*75MM |
With 2 high-speed counting inputs |
|
1S |
1S-10MT-001 |
6 points input 4 points transistor output, AC220V |
Installation size: 60*90*75MM , Dimensions: 60*90*75MM |
With 2 high-speed counting inputs, 2 high-speed pulse outputs |
สินค้า ใน PLC FX1S Series (8 ชนิด)
