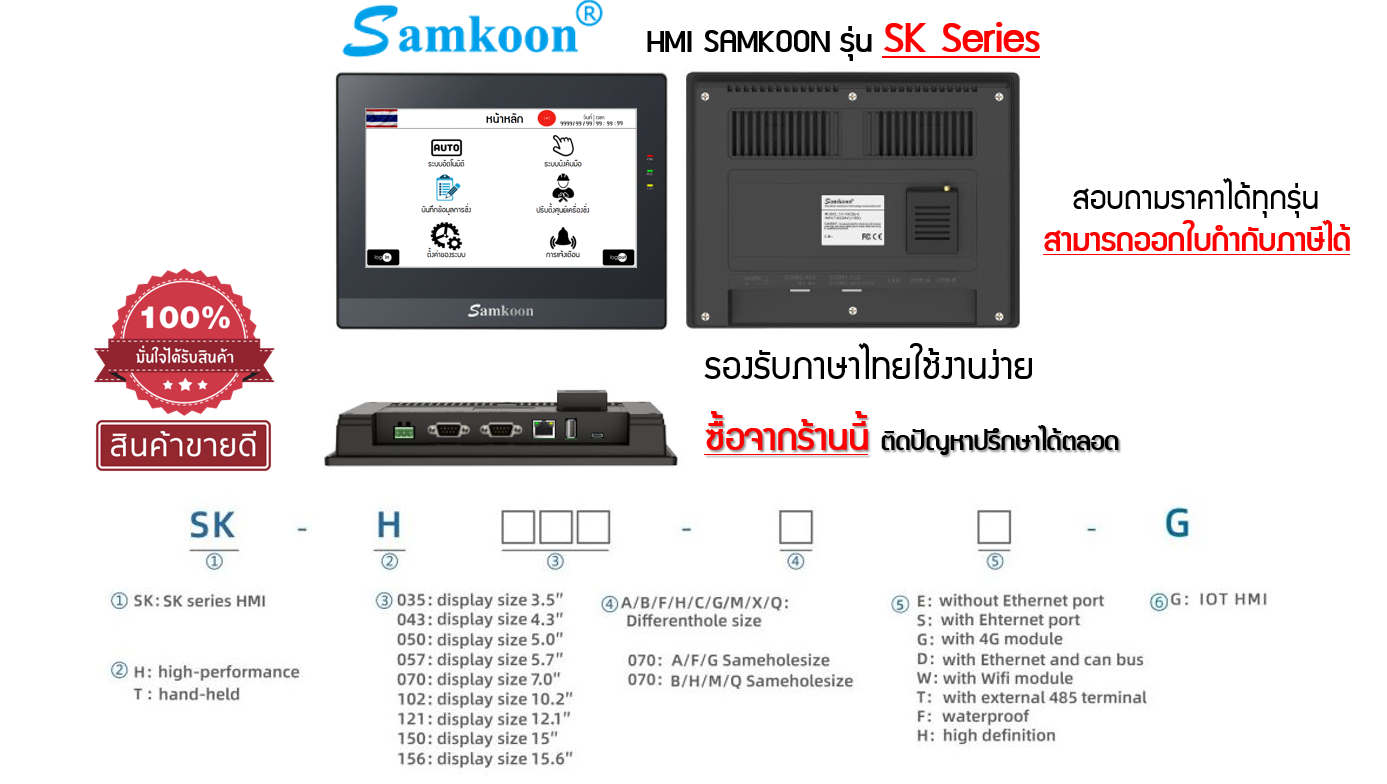

SAMKOON

SK MODEL

SK MODEL

PRODUCT NAME dimensions installation hole size display size resolution USB port ethernet port WiFi 3G programming software
SK-070QI 203×145×35（mm） 192×138（mm） 7″(16:9) 800 × 480 YES YES NO NO SKTOOL7.0
SK-102QT-G 273×211×40（mm） 259×201（mm） 10.2″(16:9) 1024 × 600 YES NO YES（optional) NO SKTOOL7.0
SK-102QS-G 273×211×40（mm） 259× 201（mm） 10.2″(16:9) 1024 × 600 YES YES YES（optional） NO SKTOOL7.0
SK-070QS-G 203×145×35（mm） 192 × 138（mm） 7″(16:9) 1024X600 YES YES YES（optional） NO SKTOOL7.0
SK-070QE-G 203×145×35（mm） 192×138（mm） 7″(16:9) 1024X600 YES NO YES（optional） NO SKTOOL7.0
SK-070QT-G 203×145×35（mm） 192×138（mm） 7″(16:9) 1024X600 YES NO YES（optional） NO SKTOOL7.0
SK-156QS 395×257×31（mm） 383×246（mm） 15.6″(16:9) 1920×1080 YES YES NO NO SKTOOL7.0
SK-070QS 203×145×35（mm） 192 × 138（mm） 7″(16:9) 800 × 480 YES YES NO NO SKTOOL7.0
SK-070QF 204×148×36（mm） 192×138（mm） 7″(16:9) 800 × 480/1024 × 600 YES NO NO NO SKTOOL7.0
SK-070QEV3 203×145×35（mm） 192×138（mm） 7″(16:9) 800 × 480 YES YES NO NO SKTOOL7.0
PRODUCT NAME dimensions installation hole size display size resolution USB port ethernet port WiFi 3G programming software
SK-070QT 203×145×35（mm） 192×138（mm） 7″(16:9) 800 × 480 YES YES NO NO SKTOOL7.0
SK-070QH 203×145×35（mm） 192×138（mm） 7″(16:9) 1024 × 600 YES YES NO NO SKTOOL7.0
SK-043QS 139×86×31（mm） 132 × 80（mm） 4.3″(16:9) 480 × 272 YES YES YES（optional） NO SKTOOL7.0
SK-043QE 139×86×31（mm） 132 × 80（mm） 4.3″(16:9) 480 × 272 YES NO NO NO SKTOOL7.0
SK-043QT 139×86×31（mm） 132× 80（mm） 4.3″(16:9) 480 × 272 YES NO NO NO SKTOOL7.0
SK-102QT 273×211×44（mm） 259×201（mm） 10.2″(16:9) 1024 × 600 YES NO NO NO SKTOOL7.0
SK-102QS 273×211×44（mm） 259× 201（mm） 10.2″(16:9) 1024 × 600 YES YES NO NO SKTOOL7.0
SK-035UE 96x81x47mm 92x77mm 3.5″(4:3) 320×240 NO NO NO NO SKTOOL6.0/6.2/7.0
SK-035FE 135x89x39mm 123x80mm 3.5″(4:3) 320×240 NO NO NO NO SKTOOL6.0/6.2/7.0
SK-043FE 150x93x39mm 141x84mm 4.3″(16:9) 480 × 272 YES NO NO NO SKTOOL6.0/6.2/7.0
PRODUCT NAME dimensions installation hole size display size resolution USB port ethernet port WiFi 3G programming software
SK-043HE 173x95x39mm 163x85mm 4.3″(16:9) 480 × 272 YES NO NO NO SKTOOL6.0/6.2/7.0
SK-043HS 173x95x39mm 163x85mm 4.3″(16:9) 480 × 272 YES YES NO NO SKTOOL6.0/6.2/7.0
SK-043UE 138x86x38mm 132x80mm 4.3″(16:9) 480 × 272 NO NO NO NO SKTOOL6.0/6.2/7.0
SK-043TE 139X86X38mm 132x80mm 4.3″(16:9) 480 × 272 NO NO NO NO SKTOOL6.0/6.2/7.0
SK-050HS 165x103x39 mm 157x95mm 5″(16:9) 800 × 480 YES YES NO NO SKTOOL6.0/6.2/7.0
SK-050HE 165x103x39 mm 157x95mm 5″(16:9) 800 × 480 YES NO NO NO SKTOOL6.0/6.2/7.0
SK-057FE 177x140x40 mm 163x133mm 5.7″(4:3) 640×480 YES NO NO NO SKTOOL6.0/6.2/7.0
SK-T070XS(hold） 258×195.4×65.1mm NO 7″(16:9) 1024×600 YES YES NO NO SKTOOL6.0/6.2/7.0
SK-070GS 225x153x40mm 210x144mm 7″(16:9) 800×480 YES YES NO NO SKTOOL6.0/6.2/7.0
SK-070GE 225x153x40mm 210x144mm 7″(16:9) 800×480 YES NO NO NO SKTOOL6.0/6.2/7.0
PRODUCT NAME dimensions installation hole size display size resolution USB port ethernet port WiFi 3G programming software
SK-070GW 225x153x40mm 210x144mm 7″(16:9) 800×480 YES YES YES NO SKTOOL6.0/6.2/7.0
SK-070GG 225x153x40mm 210x144mm 7″(16:9) 800×480 YES YES NO NO SKTOOL6.0/6.2/7.0
SK-070ME/MS V3 205x145x40mm 192x138mm 7″(16:9) 800×480 YES optional NO NO SKTOOL6.0/6.2/7.0
SK-070QE 205x145x40mm 192x138mm 7″(16:9) 800×480 YES NO NO NO SKTOOL6.0/6.2/7.0
SK-070MW 205x145x40mm 192x138mm 7″(16:9) 800×480 YES YES YES NO SKTOOL6.0/6.2/7.0
SK-070MG 205x145x40mm 192x138mm 7″(16:9) 800×480 YES YES NO NO SKTOOL6.0/6.2/7.0
SK-070ME 205x145x40mm 192x138mm 7″(16:9) 800×480 YES NO NO NO SKTOOL6.0/6.2/7.0
SK-070MS 205x145x40mm 192x138mm 7″(16:9) 800×480 YES NO NO NO SKTOOL6.0/6.2/7.0
SK-102HS V3 273x211x44mm 259x201mm 10.2″(16:9) 1024×600 YES YES NO NO SKTOOL6.0/6.2/7.0
SK-102HE V3 273x211x44mm 259x201mm 10.2″(16:9) 1024×600 YES NO NO NO SKTOOL6.0/6.2/7.0
PRODUCT NAME dimensions installation hole size display size resolution USB port ethernet port WiFi 3G programming software
SK-102HG 275x211x44mm 259x201mm 10.2″(16:9) 1024×600 YES YES NO NO SKTOOL6.0/6.2/7.0
SK-102HS 275x211x44mm 259x201mm 10.2″(16:9) 1024×600 YES YES NO NO SKTOOL6.0/6.2/7.0
SK-102HW 275x211x44mm 259x201mm 10.2″(16:9) 1024×600 YES YES YES NO SKTOOL6.0/6.2/7.0
SK-102HE 275x211x44mm 259x201mm 10.2″(16:9) 1024×600 YES NO NO NO SKTOOL6.0/6.2/7.0
SK-102CG 274x180x40mm 255x167mm 10.2″(16:9) 1024×600 YES YES NO NO SKTOOL6.0/6.2/7.0
SK-102CW 274x180x40mm 255x167mm 10.2″(16:9) 1024×600 YES YES YES NO SKTOOL6.0/6.2/7.0
SK-102CE 274x180x40mm 255x167mm 10.2″(16:9) 1024×600 YES NO NO NO SKTOOL6.0/6.2/7.0
SK-102CS 274x180x40mm 255x167mm 10.2″(16:9) 1024×600 YES YES NO NO SKTOOL6.0/6.2/7.0
SK-121FS 340x256x54mm 330x246mm 12.1″(4:3) 800×600 YES YES NO NO SKTOOL6.0/6.2/7.0
SK-121FE 340x256x54mm 330x246mm 12.1″(4:3) 800×600 YES NO NO NO SKTOOL6.0/6.2/7.0



PRODUCT NAME dimensions installation hole size display size resolution USB port ethernet port WiFi 3G programming software
SK-H150AS 365x302x63mm 356x293mm 15″(4:3) 1024×768 YES YES NO NO SKTOOL6.0/6.2/7.0

Download

HMI Software

Name Version Applicable product line Type Size
SKTOOLV7.1 SKTOOLV7.1_054_setup(20240823) SK series HMI / all-in-one machine (HMI+PLC) / IoT expansion module / remote controller Software 570 MB
SATOOL_V6.2.0.30 setup SATOOL_V6.2.0.30 EA Series HMI / HMI+PLC / SA Series HMI Software 177.31 MB
Samkoon cloud platform APP samkoonYun-v2.0.9-20210519 SK Series HMI / Remote Controller / Samkoon Cloud Platform Software 60MB
Samkoon control cloud PC APP V1.9.0.20201229 Remote Controller / Samkoon Cloud Platform Software 103MB
AK2.1.3.528 AK2.1.3.528 AK Series HMI Software 386MB
SK Analytic type HMI+SK GC_SKTOOL_6.0.0.41 HMI+PLC Software 96MB
SK SERIES HMI INSTRUCTION 2022 EA Series HMI / SK Series HMI / AK Series HMI / SA Series HMI Instruction 24MB
Instruction Manual of Samkoon PLC 1 MINI PLC / FAs Series PLC / FGs Series PLC / Multi-pulse PLC / HMI+PLC / Motion Controller / PRO Series Bus Type PLC Instruction 8M
R8 series servo instruction manual 20220509 R8 series servo driver / HK series servo motor Instruction 1.71M
PRO Series Bus Type PLC PRO Series Bus Type PLC PRO Series Bus Type PLC Software 116.69M
SamDraw3.2 SamDraw3.2 SA Series HMI Software 30MB
EA Analytic type HMI+SK V5.1 HMI+PLC Software 57MB
the first generation PC APP V1.3.11 AK Series HMI / Remote Controller / Samkoon Cloud Platform Software 50MB
The first generation of Android App 1.0 AK Series HMI / Remote Controller / Samkoon Cloud Platform Software 13MB
SA SK PLC的WIN10 USB Driver 1.0 SK Series HMI / SA Series HMI / MINI PLC / FGs Series PLC/motion control PLC / HMI+PLC Driver File 181KB
SK6.0 Win7/XP 32-bit Driver 1.0 SK Series HMI Driver File 1MB
USB Driver Signing Steps V1.0 EA Series HMI / SK Series HMI / SA Series HMI / MINI PLC / FGs Series PLC/motion control PLC / HMI+PLC Driver File 180K
EA/SA Driver installation steps V1.0 EA Series HMI / SA Series HMI Driver File 400K
SA5.0 and below USB driver 5.0 below USB driver SA Series HMI Driver File 4.79M
AK USB Driver 2.0 AK Series HMI Driver File 7MB
SK5.0 USB Driver 5.0 SK Series HMI Driver File 6MB
EA USB Driver 1.0 EA Series HMI Driver File 3MB

สินค้า ใน SAMKOON (2 ชนิด)

ราคาเริ่มต้น ถึง บาท เรียงสินค้าตาม
  • ค้นหา
SK-043FE
รหัสสินค้า SKU-00175
SK-043FE
2,650.00 บาท
4,500.00 บาท
  • สั่งซื้อ
SK-070FE
รหัสสินค้า SKU-00176
SK-070FE
3,800.00 บาท
6,500.00 บาท
  • สั่งซื้อ
แสดงสินค้าที่ 1-2 จากทั้งหมด 2 ชิ้น
